Product Introduction
Xiamen Vocana Building Material Co., Ltd is one of the most experienced manufacturers and suppliers of wpc grille for parking garage facades | vocana in China. Please rest assured to wholesale high quality wpc grille for parking garage facades | vocana made in China here from our factory.
WPC Grille for Parking Garage Facades & Ventilated Screens

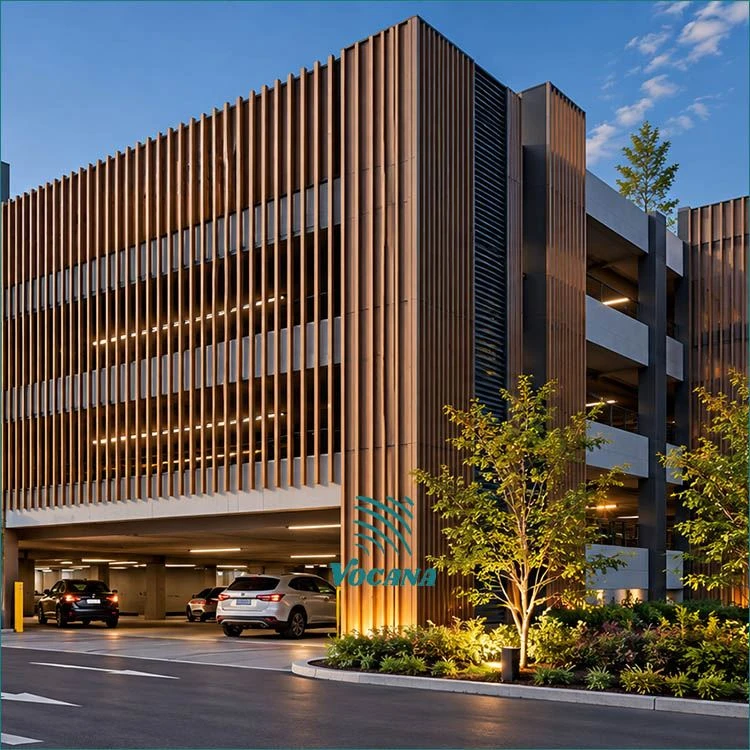

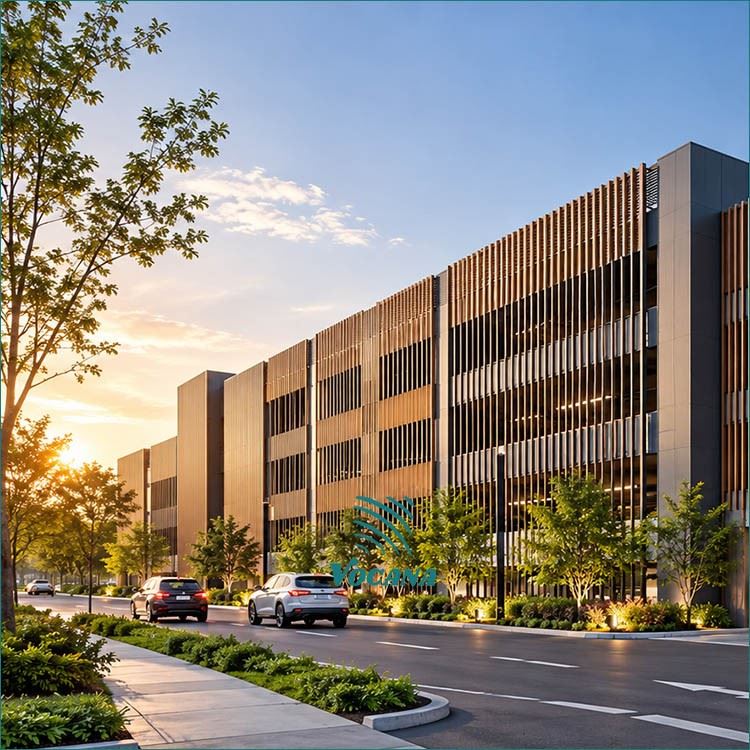

Our WPC grille can be used on parking garage facades, podium parking levels and open service areas where a wood-look screen is needed without closing the whole wall.
Profile width, gap, height and direction can be changed to suit the facade. For larger projects, our decorative WPC grille systems for commercial buildings give more screen and support options.
WPC Grille Design Starts With Air, Wind & Sightlines
Do Not Close the Ventilation
The gap between profiles changes how much of the parking area can be seen and how much open space remains. The project engineer should confirm the required ventilation before the final grille spacing is fixed.
Do Not Treat the Grille as a Main Structure
The WPC profiles should work with a separate metal support frame. Screen height, wind pressure, span, fixing points and the building structure must be checked for the real project.
How Vocana Controls WPC Grille Production
Confirm the Profile
We first lock the profile, color, length, gap and support idea. A physical sample is better than choosing only from a screen.
Check the Fit
For a new or changed profile, trial pieces are checked for shape, weight, straightness, surface and connection before mass production.
Measure the Batch
Our model-based checks can include profile size, wall thickness, weight per meter, straightness, surface and end condition.
Match the Real Need
One documented 100 × 35 mm grille profile has space for a 25 × 25 mm steel insert. Reinforcement is selected by the actual screen design, not added to every project.
WPC Grille Packing, Production Time & Shipping
Long grille profiles can bend if they are stored or loaded badly. We keep packed profiles supported along their length and plan the container around profile length, carton size and unloading method.
Production Follow-Up
For a regular profile and finish, normal planning is about 15–20 working days for a 20ft container and 20–25 working days for a 40ft container. Custom profiles or colors may take longer.
Payment & Documents
A common order structure is 40% T/T deposit before production, with the balance paid before shipment. Please confirm consignee details, invoice, packing list and bill of lading instructions before loading.
For mixed commercial projects, you can also review our WPC systems for commercial buildings. Where the grille is used around HVAC or plant areas, see our WPC grille screen for mechanical equipment areas.
Receiving, Storage & WPC Grille After-Sales
When the container arrives, check the container, cartons, labels and several profiles before installation. If there is visible transport damage, take photos or video before or during unloading and keep the damaged material aside.
Store long profiles flat, dry and fully supported. We normally suggest about 3–5% extra material for cutting, site damage and later local replacement. For coastal projects, corrosion-resistant metal parts such as SS316 fasteners can be considered according to the site exposure.
If a quality problem is reported, send the order number, profile code, photos, installation details and storage conditions. This helps us separate a production problem from transport damage, poor storage, impact or incorrect installation.
Send Us the Parking Grille Elevation
Send the facade drawing, screen height, profile spacing, project location, support frame idea and delivery date. We can help review the grille profile, reinforcement, packing, spare quantity and shipping plan before production.
Ask Vocana for a WPC Grille Plan
