Rooftop Decking Solutions for Commercial & Residential Projects
High rooftop maintenance costs, waterproof membrane failures, and difficult access conditions frequently turn rooftop spaces into expensive long-term liabilities. Waterproof and moisture-resistant WPC decking systems are increasingly replacing timber and traditional terrace materials because rooftop environments combine UV exposure, standing water, thermal cycling, and concentrated pedestrian traffic into one structural challenge.
Unlike ground-level landscapes, rooftop applications place additional demands on dead loads, waterproof membrane protection, drainage pathways, and long-term maintenance access. Material selection directly affects lifecycle cost, installation labor, and future replacement cycles.
Moisture absorption: <0.8% according to ASTM D570, reducing swelling risk in rooftop exposure conditions.
Slip resistance: R11-R12 rating tested under DIN 51130, suitable for public-access roof terraces.
Flexural strength: >32 MPa under ASTM D7032, supporting high-traffic pedestrian zones.
UV weathering: Passed 2000-hour QUV accelerated aging test (ASTM G154) with ΔE color variation below 4.5.
Key Takeaways for Architects & Contractors
The Mechanics of Failure in Rooftop Applications
Roof terraces experience multiple simultaneous environmental stresses.
Traditional materials generally fail because of combined thermal, moisture, and mechanical fatigue mechanisms.

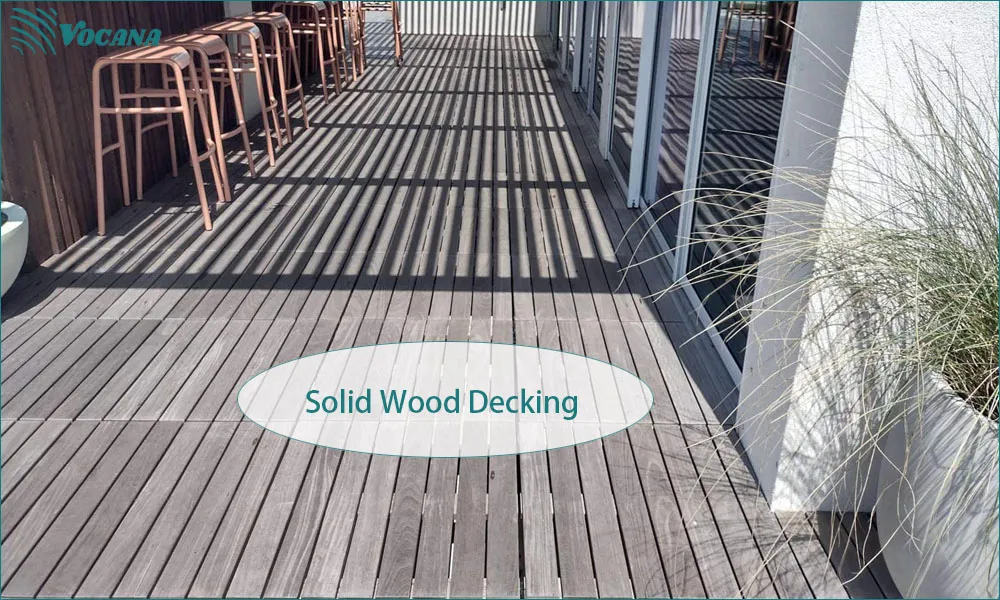

Solid Wood Failure Mechanism
Natural wood contains cellular capillary structures that continuously absorb moisture.
Common rooftop failure sequence:
Rainwater infiltration
Cell expansion
UV-driven lignin degradation
Freeze-thaw expansion
Surface cracking
Fastener loosening
Structural deformation
Freeze-thaw cycling creates internal stress concentration.
Water expands roughly 9% during freezing. Repeated rooftop winter exposure accelerates internal cell-wall damage.
Common field observations:
Surface checking
Splitting
Warping
Fastener uplift
Fungal growth
Increased slip risk

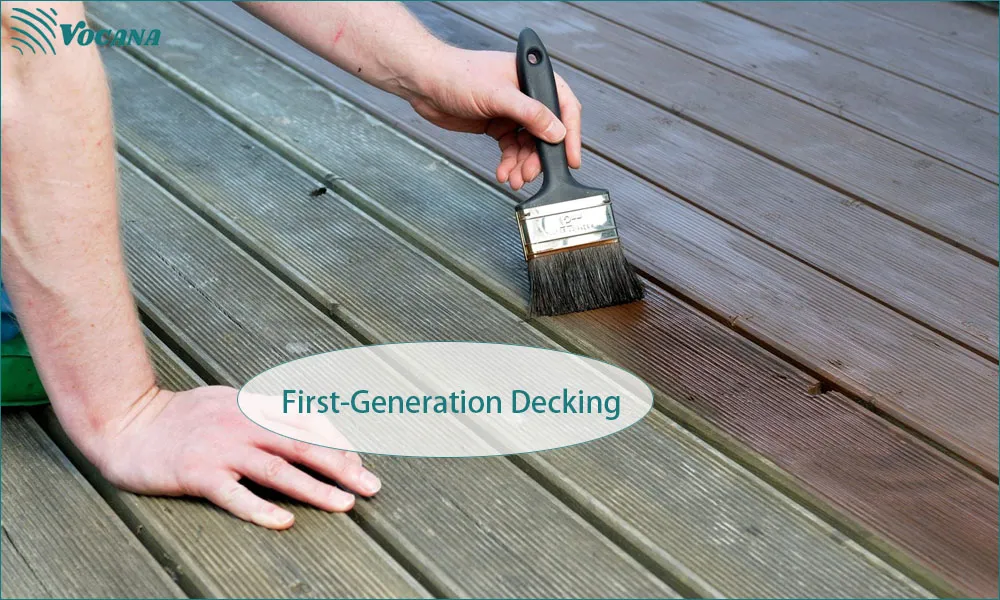

First-Generation Composite Failure
Early-generation WPC often lacked co-extruded protective cap layers.
Failure mechanisms include:
Polymer oxidation
Surface chalking
Moisture ingress
Pigment fading
Surface fiber exposure
UV radiation causes photo-oxidative chain scission inside low-density polymer matrices.
Under rooftop conditions with direct sun exposure:
Surface temperature can reach:
65–78°C in Middle East climates
55–70°C in tropical commercial roofs
45–60°C in temperate urban projects
Expansion and contraction cycles gradually weaken connections.
Aluminum Composite Panel Challenges
While aluminum offers dimensional stability, rooftop users frequently report:
Heat island effects
Excessive surface temperatures
Condensation underneath panels
Acoustic reflection issues
Industrial appearance unsuitable for hospitality projects
For rooftop restaurants and residential terraces, surface comfort becomes a design factor.
Material Solution: Exterior Composite WPC for Rooftop Conditions
Modern exterior composite WPC systems use a co-extruded cap layer integrated with structural composite cores.
Engineering objectives include:
Moisture-Resistance
Co-extrusion protective caps reduce:
Water penetration
Surface contamination
Mold accumulation
Salt spray intrusion
ASTM D570 water absorption values typically remain below 1%.
Thermal Stability
Typical thermal expansion coefficient:
30–50 ×10−6 /°C
Proper movement gaps and hidden clip systems compensate for thermal movement.
Surface Friction Performance
Commercial roof terraces frequently require:
R11
R12
ASTM E303 compliance
Particularly relevant for:
Rooftop restaurants
Hospitality terraces
Apartment amenity decks
Public observation platforms
Recommended Product Applications
| Project Type | Recommended Product |
|---|---|
| Commercial roof plaza | Solid-core co-extruded decking |
| Residential roof terrace | Hollow lightweight decking |
| Coastal rooftop resort | Anti-corrosion capped decking |
| High-rise apartment amenity area | Fire-resistant solid decking |
| Outdoor rooftop restaurant | Slip-resistant textured decking |
Technical Specifications Table & Product Matrix
| Engineering Parameter | Test Standard | Vocana Performance | Recommended Product |
|---|---|---|---|
| Flexural Strength | ASTM D7032 | >32 MPa | Solid-Core Decking |
| Water Absorption | ASTM D570 | <0.8% | Co-extruded Decking |
| Slip Resistance | DIN 51130 | R11-R12 | Textured Commercial Decking |
| UV Weather Resistance | ASTM G154 | 2000h QUV | UV Resistant Decking |
| Salt Spray Resistance | ASTM B117 | 3000h no visible deterioration | Marine Grade WPC |
| Freeze-Thaw Resistance | EN321 | No structural degradation | Commercial Decorative Decking |
| Fire Performance | EN13501 | Bfl-s1 available | Fire-Rated Decking |
Expert Tip from Vocana Engineering Team:
Rooftop decking over waterproof membranes should never sit directly on concrete surfaces. Use pedestal support systems with drainage channels and maintain a minimum 2% roof slope. In projects exceeding 15 meters uninterrupted length, expansion joints should be introduced every 6–8 meters to control thermal movement stress.
Click for more Vocana WPC Certificates & Testing Reports
TCO & ROI Analysis
Initial material price frequently misleads project owners.
Roof access difficulty changes economics significantly.
Maintenance crews, protective coatings, and replacement logistics create substantial hidden costs.
20-Year Lifecycle Cost Comparison
| Cost Category | Hardwood Deck | Waterproof WPC Decking |
|---|---|---|
| Initial Material | Medium | Medium |
| Surface Oil Treatment | 8–12 cycles | None |
| Annual Labor Maintenance | High | Low |
| Replacement Frequency | 8–12 years | 20+ years |
| Structural Repairs | Moderate | Minimal |
| Total Ownership Cost | 100% | 58–65% |
Typical commercial rooftop projects can reduce long-term ownership expenditure by approximately:
35–45%

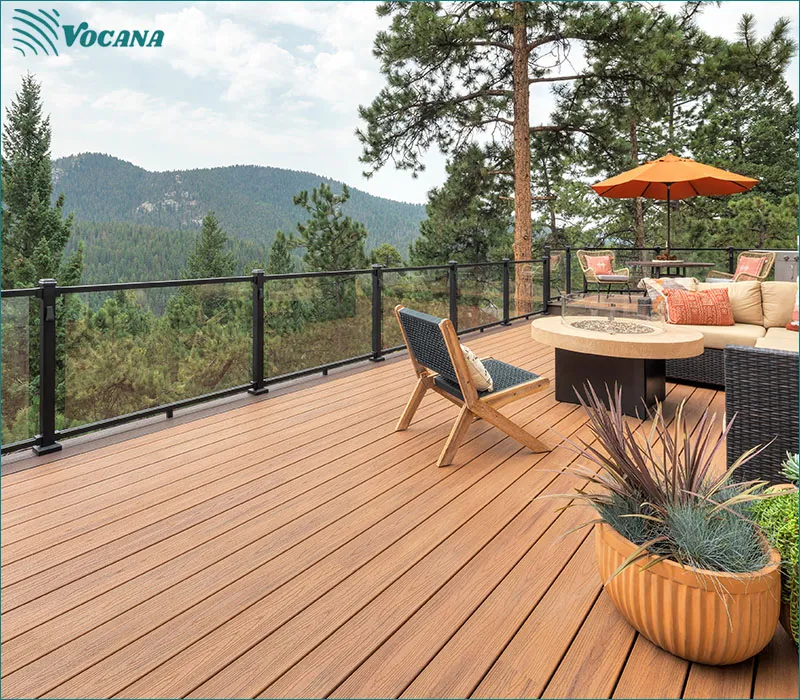

Case Reference: Coastal Hospitality Rooftop Project
A mixed-use resort development in Southeast Asia specified rooftop decking for a sky lounge and swimming terrace.
Environmental conditions:
High humidity above 80%
Salt-laden coastal airflow
Annual UV index above 10
Heavy weekend pedestrian loads
Traditional hardwood initially proposed by consultants showed predicted maintenance intervals of approximately every 18 months.

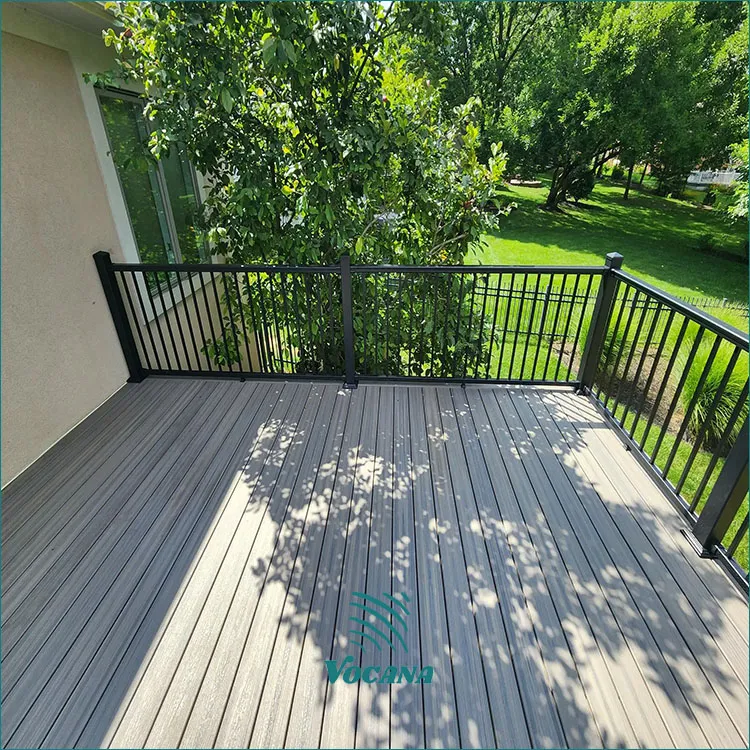

Vocana anti-corrosion WPC decking was selected with:
Co-extruded protective cap
Stainless steel clip system
Aluminum joists
Pedestal installation structure
After three years:
No visible structural movement
Surface color stability remained within the design range
No mold-related service reports
No re-coating cost
Check for more Vocana WPC Panels Applications & Project Cases
Composite decking applications & project gallery
Engineering FAQs for Rooftop composite decking
What is the required joist spacing for solid WPC decking when installed on rooftop commercial pedestrian areas with heavy foot traffic?
For commercial rooftop conditions, joist spacing typically ranges from 300–350 mm center-to-center. Heavy pedestrian traffic, outdoor furniture loads, and concentrated equipment zones may require reduced spacing. Structural calculations should always account for local code loading requirements and board section modulus.
How does moisture-resistant WPC decking perform compared with tropical hardwood under rooftop environments with frequent rainfall exposure?
Moisture resistance WPC decking generally maintains water absorption below 1% under ASTM D570 conditions. Tropical hardwood may absorb substantially more moisture, leading to swelling, shrinkage, and maintenance cycles involving oils, coatings, and periodic replacement.
Can anti-corrosion WPC decking be installed directly above waterproof roofing membranes without damaging the roof system?
Direct placement is not recommended. Rooftop decking should use pedestal systems or raised aluminum substructures. This maintains drainage channels, protects waterproof membranes from concentrated loading, and allows future maintenance access.
What structural loading considerations should engineers verify before specifying rooftop composite decking for mixed-use developments?
Engineers should assess live load, dead load, wind uplift, concentrated equipment loading, pedestal distribution pressure, and thermal movement. Roof slab capacity and waterproof membrane compatibility should be reviewed before final specification.
How should thermal expansion gaps be designed for rooftop decking exposed to Middle East summer temperatures above 60°C surface temperature?
Expansion gaps should vary according to board length and local temperature range. Typical recommendations remain 5–8 mm side spacing and movement breaks every 6–8 meters in long deck runs.
What installation details help prevent water accumulation beneath rooftop WPC decking systems?
Drainage slope, pedestal supports, airflow cavities, inspection access zones, and correctly aligned joist orientation all contribute to preventing trapped moisture and membrane deterioration.
Which fire performance level should architects specify for rooftop decking installed in mixed-use commercial buildings?
Local code requirements vary. Many commercial projects specify EN13501 Bfl-s1 performance or equivalent regional standards. Fire regulations should be coordinated with local authorities and project consultants.
How does commercial decorative decking behave under rooftop restaurant conditions involving furniture movement and high foot traffic?
Solid-core commercial decking with textured wear surfaces generally performs better against abrasion and point loading. Surface cap technology also reduces scratching and staining from hospitality operations.
Forward Engineering Recommendation
Future rooftop spaces are moving beyond simple recreational terraces. More projects now integrate solar canopies, green roof systems, rooftop dining, and multi-functional public spaces. Decking materials should therefore be evaluated as part of an integrated building envelope system rather than a decorative finish selection.
Submit architectural drawings, rooftop CAD sections, or project loading requirements for a free material take-off analysis. Vocana engineering teams can provide project-specific decking layouts, installation node details, TDS documents, and SGS testing reports for commercial rooftop applications.
